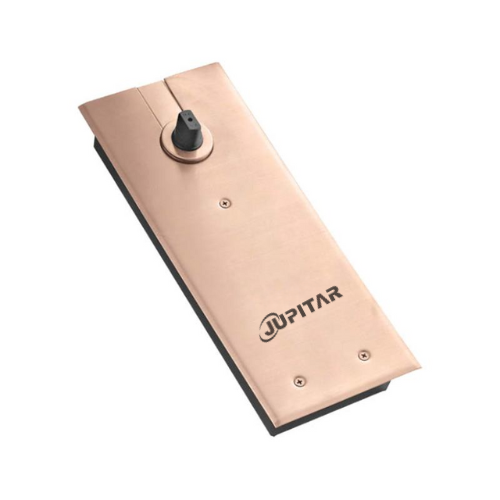

JFS-8400

Double Spring (Heavy Duty)

Specification

Cam Action Floor Spring with Closing Force EN 3
  • Maximum door weight : Up to 80Kg.
  • Maximum door width 950mm
  • Closing speed : 130-10°
  • Final closing speed : 10-0°
  • Hold Open (standard) : 90° hold open
  • Weight of floor spring approx : 6kg

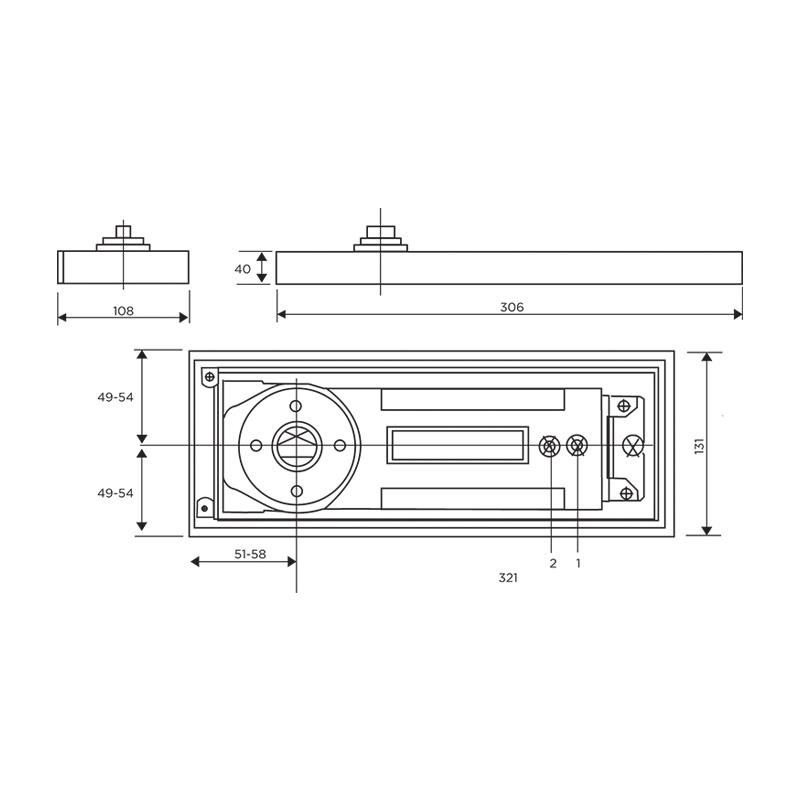

  • Installation dimension : Length-306mm, Width-108mm, Height-40mm
  • Tested to : 5,00,000 cycles
  • Tested as per : EN 1154
  • 3 Years replacement Guarantee
  • Colour: SS, Rose Gold, Gold, Black Mate
    •
  • CE certified : Yes
    • Get Details

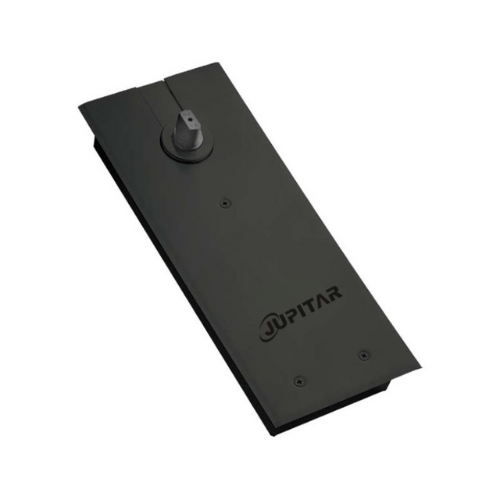

    JFS-10400

    Double Spring Floor Hinge

    Specification

    Cam Action Floor Spring with Closing Force EN 3

  • Maximum door weight : Up to 80Kg.
  • Maximum door width 950mm
  • Closing speed : 130-10°
  • Final closing speed : 10-0°
  • Hold Open (standard) : 90° hold open
  • Weight of floor spring approx : 6kg
  • Installation dimension : Length-306mm, Width-108mm, Height-40mm
  • Tested to : 5,00,000 cycles
  • Tested as per : EN 1154
  • 3 Years replacement Guarantee
  • CE certified : Yes
    • Get Details

    JFS-7700

    Single Spring Floor Hinge

    Specification

    Single Cylinder Floor Spring for Heavy Wooden/Glass Doors<p>

  • Closing Force EN 1-4
  • Max Door Weight Capacity: 65-200 Kgs.
  • Max Door Widht 1300mm
  • Closing Speed: 130-10 Degree
  • Final Closing Speed: 10-0 Degree
  • Without Hold Open as Standard
  • Hold open at 90,105 Degree on Demand
  • Weight of floor machine approx: 6 Kg
  • Dimension including cement box:-L=274mm, W=82mm, H=50mm
  • Adjustable possible within steel box:-L=8mm, W=8mm, H=6mm
  • Durablity:-5,00,000 Cycle Tested.
  • Tested as per EN-Standard
  • Finish(Cover):-SSS
    • Get Details

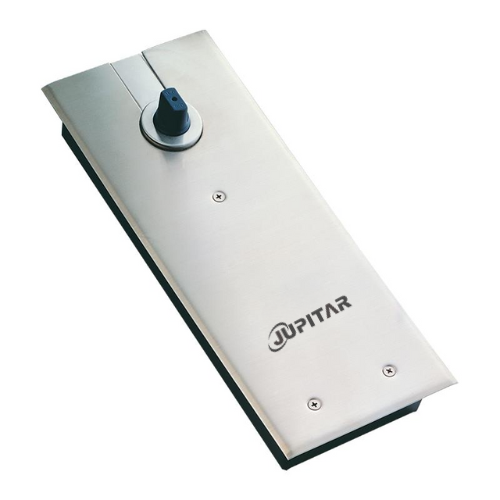

    JFS-7400

    Double Spring Floor Hinge

    Specification

    Cam Action Floor Spring with Closing Force EN 4
    • Maximum door weight 150Kgs.
    • Maximum door width 1100mm
    • Closing speed : 130-10°
    • Final closing speed : 10-0°
    • Hold Open (standard): 90° hold open
    • Weight of floor spring approx : 6kg
    • Installation dimension: Length-306mm, Width-108mm, Height-40mm
    • Tested to : 5,00,000 cycles
    • Tested as per : EN 1154
    • Also available with inter changeable spindles (for export)
    • CE certified : Yes 3 8 4 1 1 3
    • Colour: SS, Rose Gold, Gold
    • Fire Rated
    Get Details
