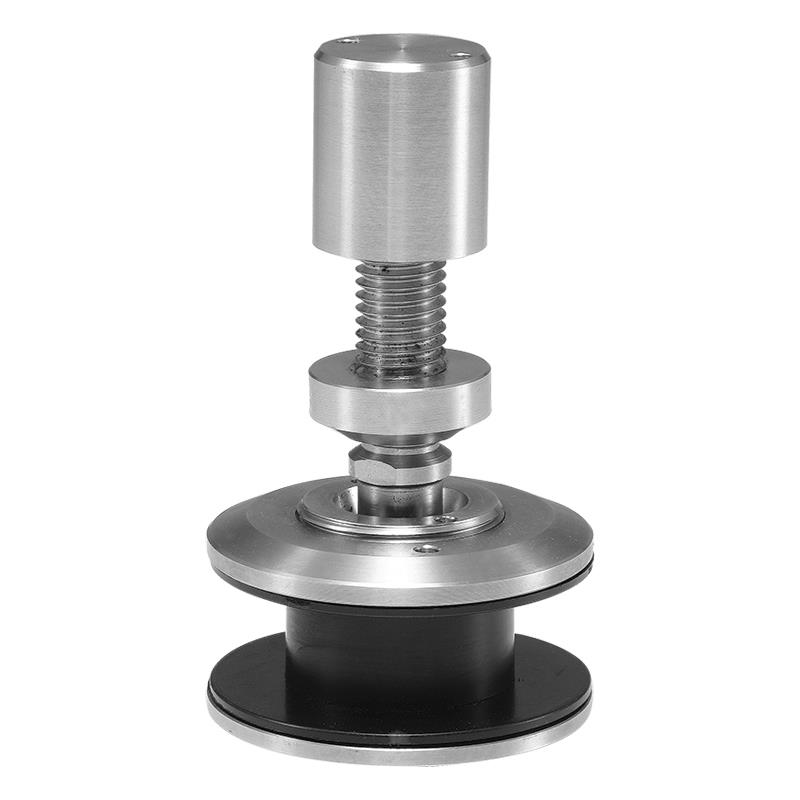

JSP-AFB-36-FL
Articulate Bolt (Flat head)
Specification
- Articulated Routel
- Flat head bold
- Teflon washers to prevent damage to glass

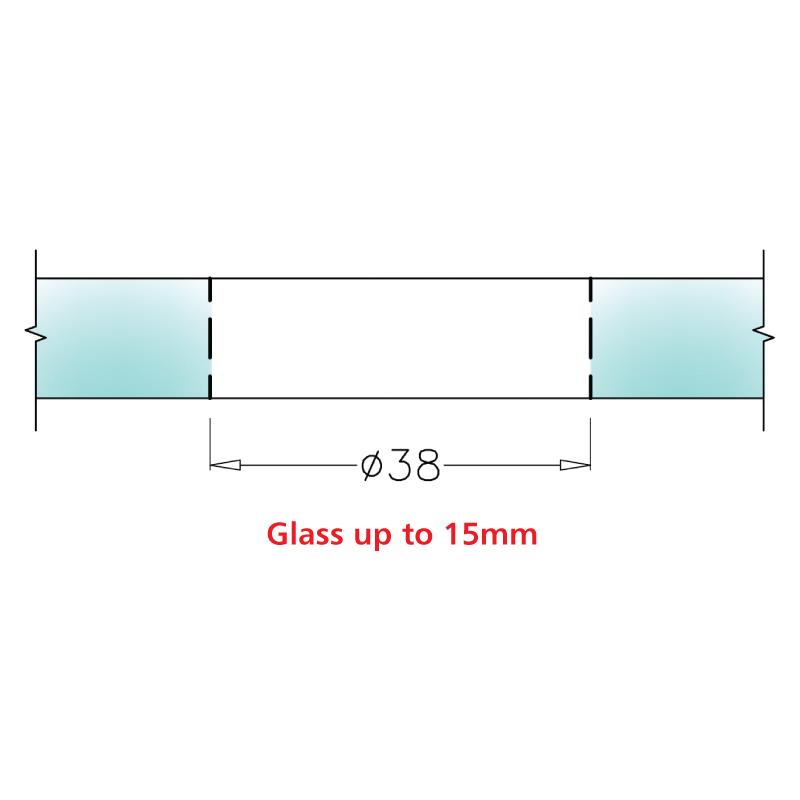

- Adjustable up to 15mm thickness of glass
- Stainless Steel Grade 316
- Available in PSS / SSS finish
- Protective cover cap on head

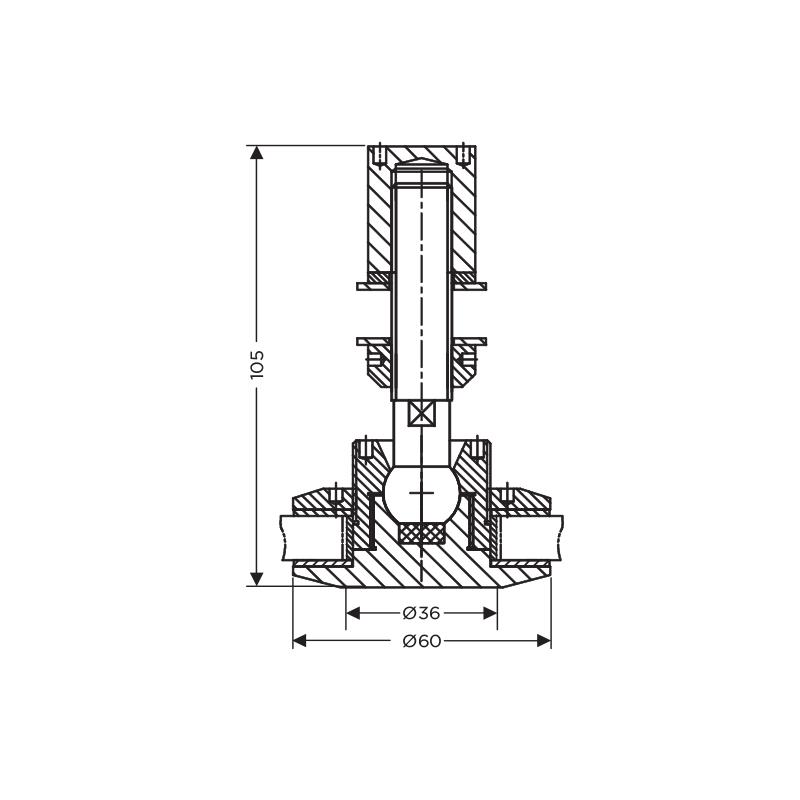

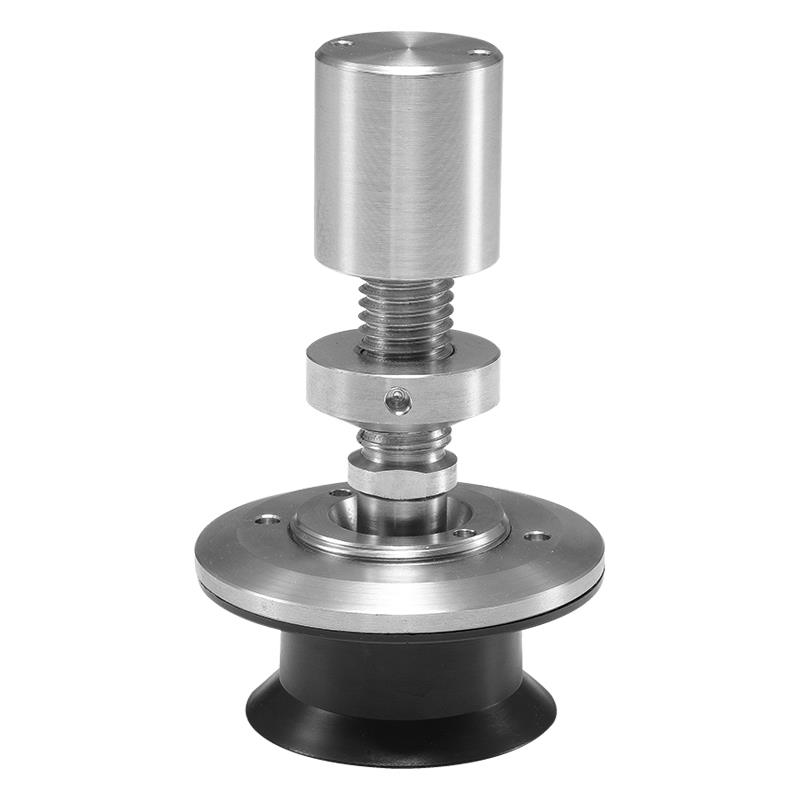

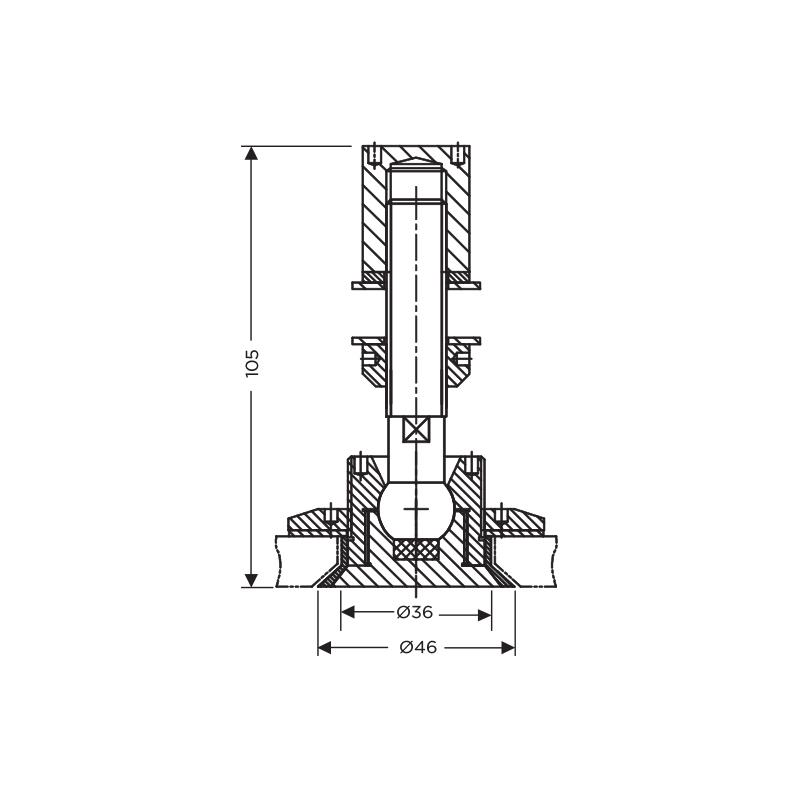

JSP-AFB-36-CS
Articulate Bolt (Counter Sunk Head)
Specification
- Countersunk head bolt

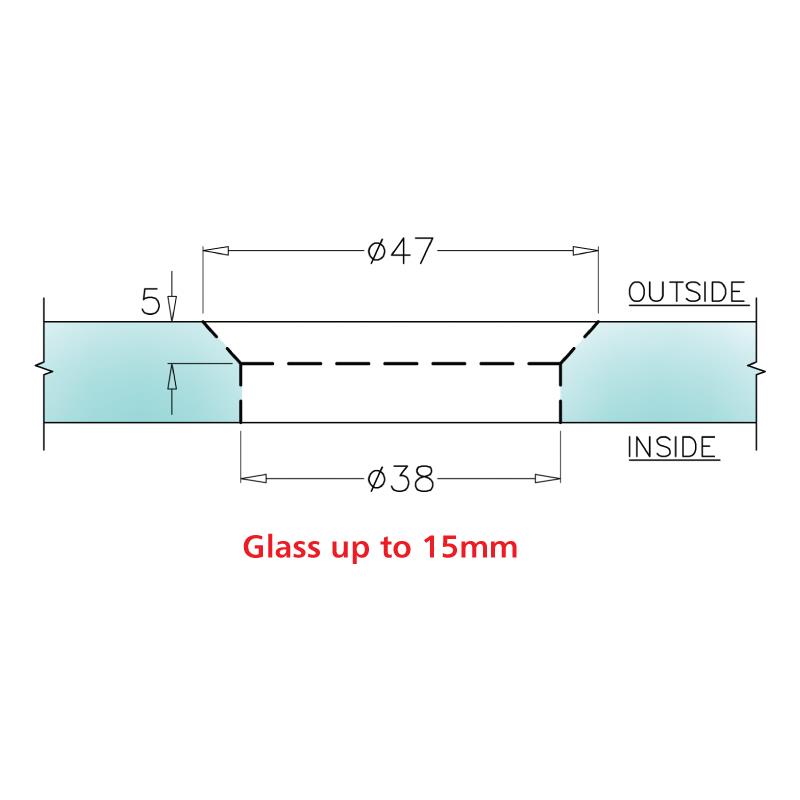

- Adjustable upto 15mm thickness of glass
- Stainless Steel Grade 316
- Washers prevent glass damage

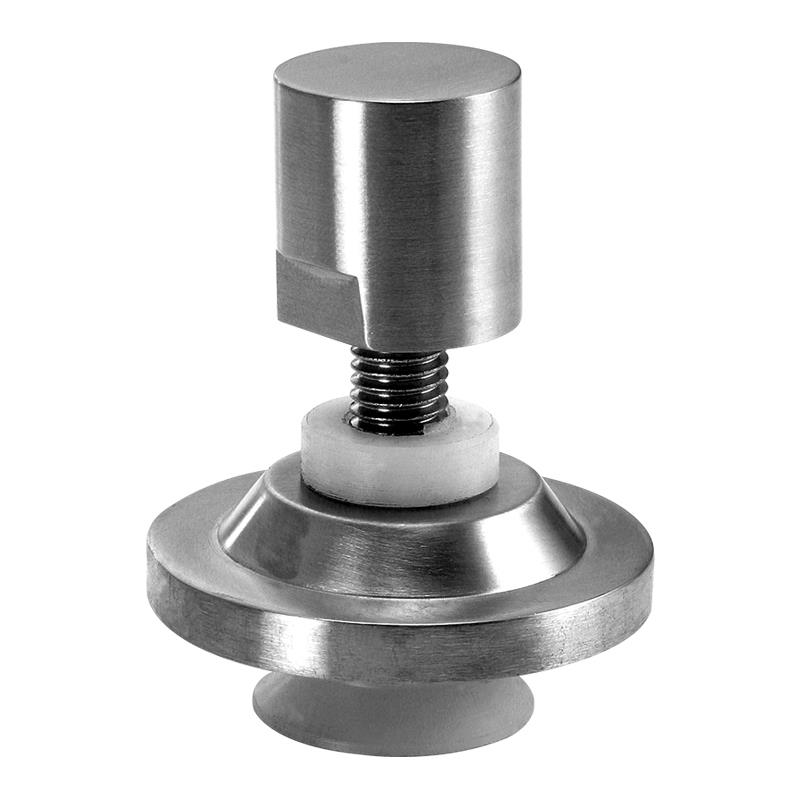

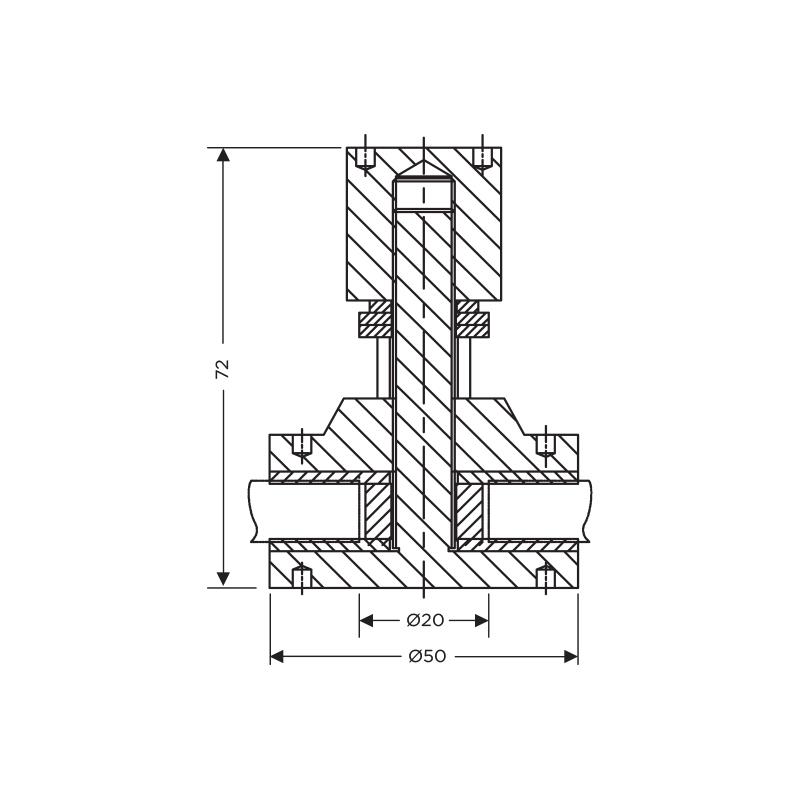

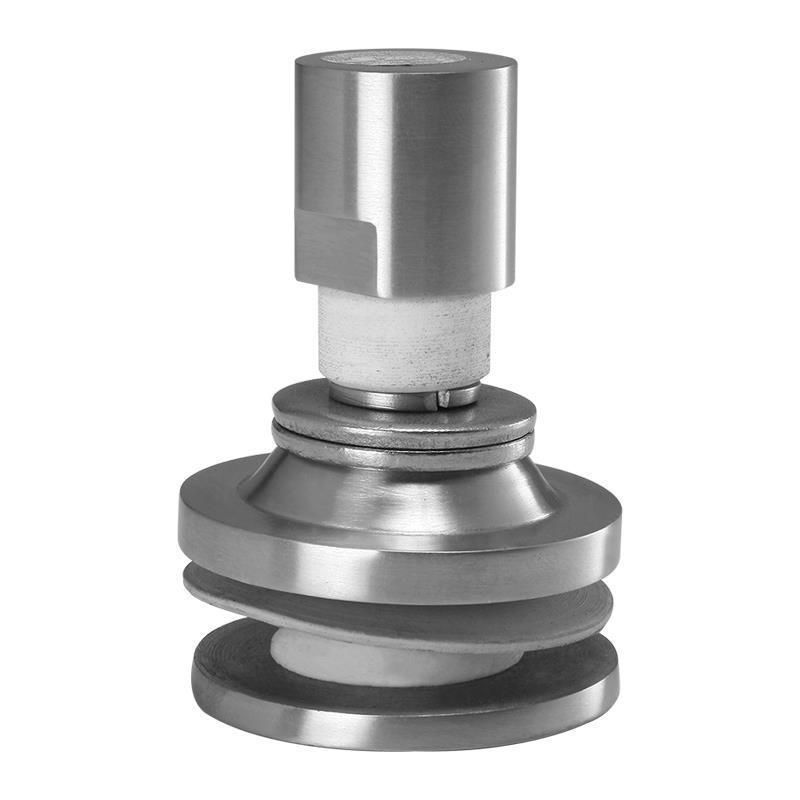

JSP-AFB-FL
Fixed Bolt (Flat head)
Specification
- Flat head bolt
- Teflon washers to prevent damage to glass

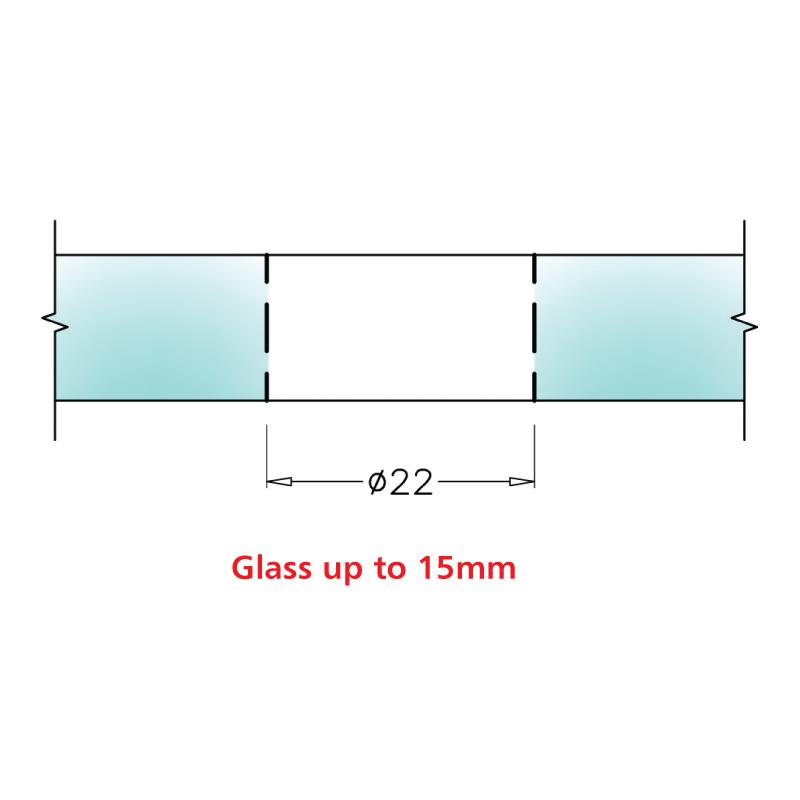

- Adjustable up to 15mm thickness of glass
- Stainless Steel Grade 316
- Available in PSS / SSS finish
- Protective cover cap on head

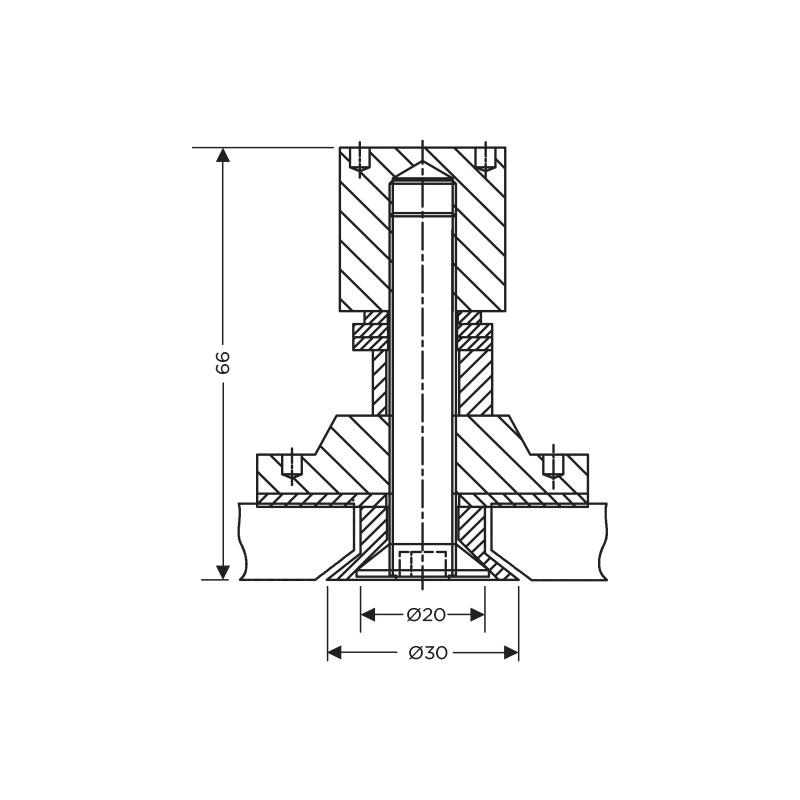

JSP-AFB-CS
Fixed Bolt (Counter Sunk Head)
Specification

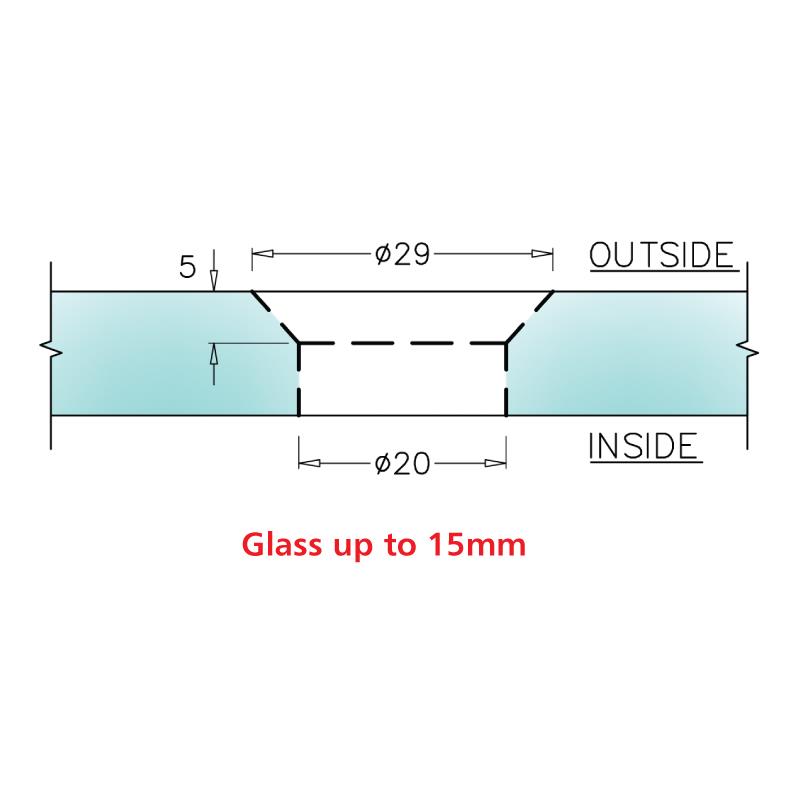

- Countersunk head bolt
- Teflon washers to prevent damage to glass
- Adjustable up to 15mm thickness of glass
- Stainless Steel Grade 316
- Available in PSS / SSS finish

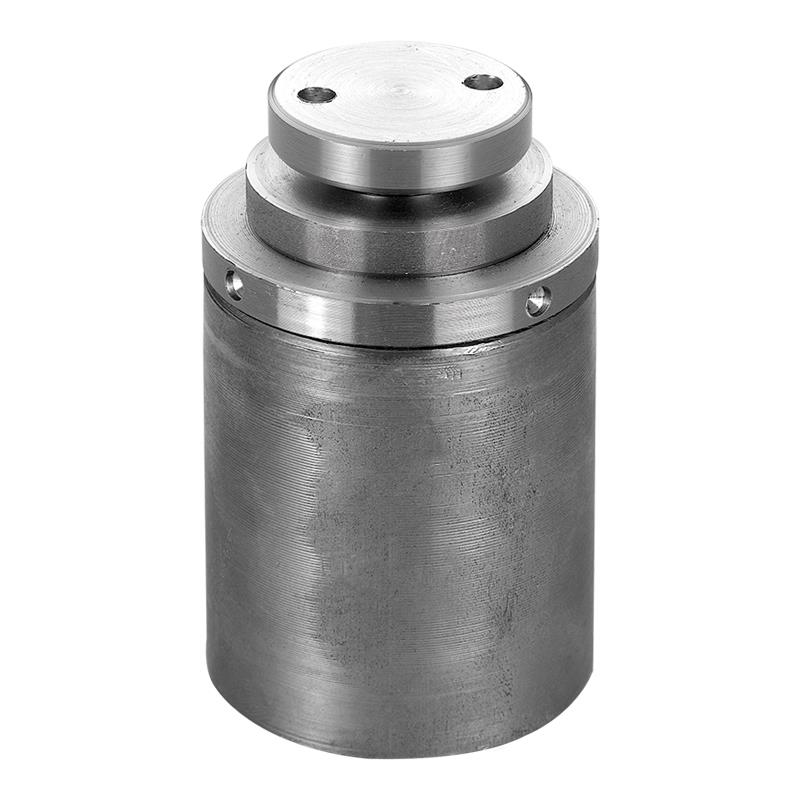

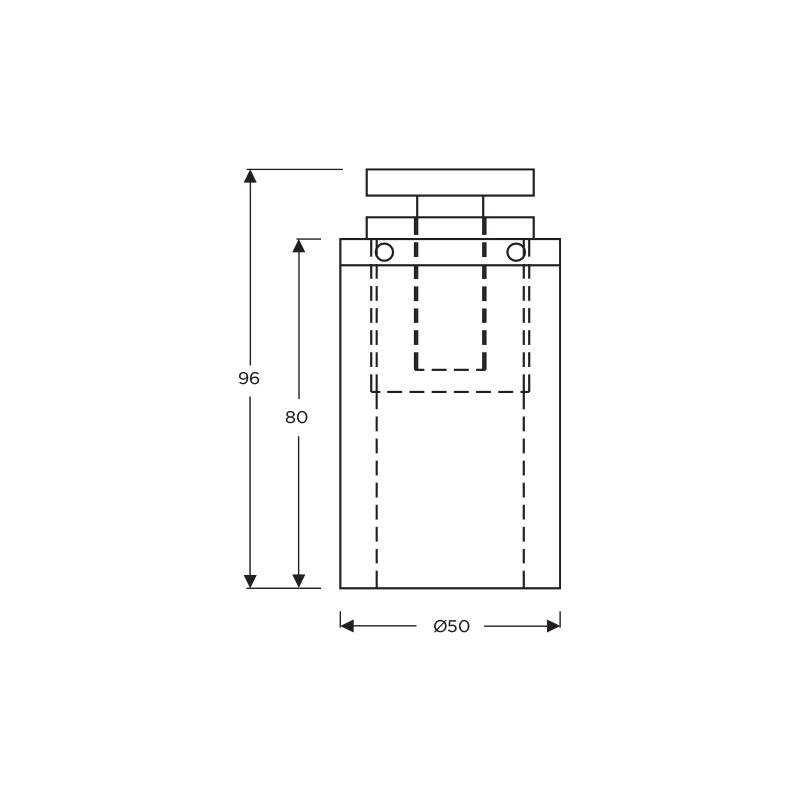

JSP-1A-01
Spider Holder
Specification
- Ensure proper gripping without fin spiders
- Bottom part MS for welding compatibility with M
- structure
- Top part stainless steel for better aesthetics (SS 304)
- Washers prevent glass damage
